Baghouse Dust Collector: Industrial Guardian of Efficient Dust Removal

Under the current background of rapid industrial development, environmental protection standards are constantly improving, and how to effectively control dust emissions in the production process has become the focus of many companies. Among them, Baghouse Dust Collector, as one of the most commonly used industrial dust removal equipment, is widely used in metallurgy, building materials, chemical industry, electric power, mechanical processing and other fields with its high dust removal efficiency, strong adaptability and stable operation.

What is Baghouse Dust Collector? ——The backbone of the industrial "lung" system

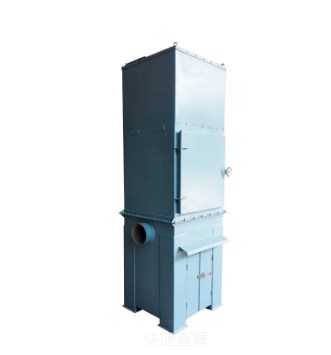

Baghouse Dust Collector is a device that captures dust particles in dust-laden gas through filter media to purify the air. It is mainly composed of a box, filter bags, dust removal system, control system and other parts. After the dust-laden gas enters the equipment, large dust particles settle first through inertial sedimentation and gravity, while fine dust is intercepted and adsorbed by the surface of the bag. The clean gas is discharged after being filtered by the filter bag to achieve pollution control.

The core principle and filtering mechanism of Baghouse Dust Collector
The core of the working of Baghouse Dust Collector is "filtration", but this filtering is not a simple mechanical interception, but an "initial filtering layer" is formed through the dust layer on the filter bag to continuously enhance its filtering effect. The specific process is as follows:

Dust-containing gas enters the equipment: enters the ash hopper or diversion area through the air inlet, and the coarse particles sink to the ash collection area due to gravity.

Filter bag filtering: tiny dust is adsorbed on the surface of the filter bag with the air flow, and the clean gas passes through the filter material and is discharged through the air outlet.

The cleaning mechanism starts: as the dust on the surface of the filter bag thickens and the pressure difference of the equipment increases, the system automatically triggers the cleaning program (pulse blowing, mechanical vibration or back-blowing) to clean the dust on the surface of the filter bag.

Dust collection: The cleaned dust falls into the ash hopper and is discharged or recycled by the dust unloading device.

This "dynamic filtration + periodic cleaning" mechanism ensures that the equipment can still maintain good filtration efficiency under high load and continuous operation.

Classification method: Diversified response to different working conditions
Depending on the structure and cleaning method, bag dust collectors can be divided into many types, and common classifications include:

By cleaning method:

Pulse jet bag dust collector: suitable for environments with high dust concentration and frequent cleaning, with thorough cleaning and stable operation.

Mechanical vibration bag dust collector: suitable for small and medium air volume and low dust viscosity, with simple structure and convenient maintenance.

Back-blowing bag dust collector: suitable for occasions with fine dust particle size and large air volume changes, with low energy consumption.

By filter bag arrangement method:

Internal filtration (gas passes through the filter bag from inside to outside);

External filtration (gas passes through the filter bag from outside to inside).

Different types of Baghouse Dust Collector can be flexibly selected according to actual working conditions to ensure the best dust removal effect and economy.

Technical advantage analysis: Why is Baghouse Dust Collector becoming more and more popular?

High dust removal efficiency: generally up to 99% or more, and fine dust can also be effectively captured.

Strong adaptability: can handle dust of different properties, including high temperature, high humidity, and corrosive flue gas.

Stable operation: mature structure, easy operation, and relatively low maintenance cost.

Good environmental compliance: can meet the increasingly tightened emission standards of countries and regions.

Great potential for energy saving and consumption reduction: the new generation of products adopts an intelligent control system, which can dynamically adjust the cleaning frequency according to the load to reduce energy consumption.

Wide application scenarios: ubiquitous from steel to electronic manufacturing
Bag dust collectors appear in almost all industrial sites that require dust control due to their wide versatility and stable effect:

Metallurgical industry: steelmaking, electric furnace flue gas treatment;

Building materials industry: cement production, cement loading and unloading system;

Chemical industry: material dosing system, reactor exhaust;

Energy industry: coal-fired boiler flue gas purification;

Woodworking and furniture manufacturing: sawdust collection, workshop air purification;

Food and pharmaceutical industry: powder transportation, packaging process dust removal.

It is these complex and ever-changing demands that have driven the continuous innovation of bag dust collector technology, from traditional manual control to intelligent and modular development.

In the future, bag dust collector technology will continue to develop in the direction of "high efficiency, low energy consumption, and intelligence", helping various industries to achieve green transformation. If you are looking for an efficient and reliable dust control solution, bag dust collector is undoubtedly a priority choice.
